Specifications

PDF
AXL.LDM.001
Controller
Display
TFT 5.5 inch LCD
Minimum Display Unit
0,01 to 100μm (7-level selectable)
Diplay Range
(plus minus) 99.99999 to (plus minus) 9999.9 mm
Measurement Position Monitor
Monitor Image
Tolerance Check Output Display
5-level LCD indicator
Alarm output
NPN open -collector output
5-level Comparator Output
NPN open-collector output for OUT1
Comparator Ready Output
NPN open-collector output for OUT2
Strobe Output
NPN open-collector output for OUT3
Synchronous Input
Non - voltage input for OUT1
Reset Input
Non - voltage input for OUT2
Auto-Zero Input
Non - voltage input for OUT3
Program Selection Input
Non-voltage input x 4 inputs
Statistical Processing Input
Non - voltage input for OUT1
Analog Output
10V x 2 outputs
Sub Mode
5-level comparator output
NPN open-collector output for OUT2
Comparator ready output
NPN open-collector output for OUT2
Strobe output
NPN open-collector output for OUT2
Statistical processing output
NPN open-collector output x 2 outputs
Function output
Selectable from focus, area check, and differential, NPN open-collector output x 2 outputs
BCD Mode
BCD output
Measurement data output (Sign + 7 digits), OUT1/OUT2 selectable, NPN open-collector output
BCD selection output
NPN open-collector output
BCD selection input
Non-voltage input
Synchronous Input
Non - voltage input for OUT2
Reset Input
Non - voltage input for OUT2
Auto-Zero Input
Non - voltage input for OUT2
Statistical Processing Input
Non - voltage input for OUT2
RS-232C Interface
Measurement data output and control I/O, printer (Baud rate can be selected uo to 115200 bps)
Video Output
Conforming to the NTSC system (PIN connector)
Major Functions
Simultaneous measurement, Area designation, Calculation, Averaging, Calibration, 16-program memory, Measurement modes, Auto-zero, Print-out, Abnormal value elimination, Transparent object measurement, Measurement point display, Group comparison, Unacceptable value history, Trend display, Statistical processing, Mutual interference prevention, Application function, etc.
Power Supply Voltage
24 VDC ±10%
Current Consumption
1.2 A max.
Enclosure Rating
IP64 (Panel surface only)
Ambient Temperature
0 to +40°C
Relative Humidity
35 to 85%, (No condensation)
Measuring Heads
Measuring Range
0,3 - 30mm
Smalest Detectable Object
0,3mm
Light Source
GaN green LED
CCD Scanning Range
approx. 33mm
Measurement Accuracy
(plus minus) 2μm
Repeatability
(plus minus) 0,15μm
Monitor Camera
2400 samples/sec
Enclosure Rating
IP64
Ambient Temperature
0 to +50℃
Relative Humidity
35 to 85%, (No condensation)
The AXL.LDM.001 complies with the following European standards: EMC Directive: EN61326-1D60 Low-voltage directive: EN60825-1 (LED class 1)/EN61010-1 (Overvoltage category II, Pollution degree 2)

Specifications

PDF
AXL.LDM.002
Controller
Display
TFT 5.5 inch LCD
Minimum Display Unit
0,01 to 100μm (7-level selectable)
Diplay Range
(plus minus) 99.99999 to (plus minus) 9999.9 mm
Measurement Position Monitor
Monitor Image
Tolerance Check Output Display
5-level LCD indicator
Alarm output
NPN open -collector output
5-level Comparator Output
NPN open-collector output for OUT1
Comparator Ready Output
NPN open-collector output for OUT2
Strobe Output
NPN open-collector output for OUT3
Synchronous Input
Non - voltage input for OUT1
Reset Input
Non - voltage input for OUT2
Auto-Zero Input
Non - voltage input for OUT3
Program Selection Input
Non-voltage input x 4 inputs
Statistical Processing Input
Non - voltage input for OUT1
Analog Output
10V x 2 outputs
Sub Mode
5-level comparator output
NPN open-collector output for OUT2
Comparator ready output
NPN open-collector output for OUT2
Strobe output
NPN open-collector output for OUT2
Statistical processing output
NPN open-collector output x 2 outputs
Function output
Selectable from focus, area check, and differential, NPN open-collector output x 2 outputs
BCD Mode
BCD output
Measurement data output (Sign + 7 digits), OUT1/OUT2 selectable, NPN open-collector output
BCD selection output
NPN open-collector output
BCD selection input
Non-voltage input
Synchronous Input
Non - voltage input for OUT2
Reset Input
Non - voltage input for OUT2
Auto-Zero Input
Non - voltage input for OUT2
Statistical Processing Input
Non - voltage input for OUT2
RS-232C Interface
Measurement data output and control I/O, printer (Baud rate can be selected uo to 115200 bps)
Video Output
Conforming to the NTSC system (PIN connector)
Major Functions
Simultaneous measurement, Area designation, Calculation, Averaging, Calibration, 16-program memory, Measurement modes, Auto-zero, Print-out, Abnormal value elimination, Transparent object measurement, Measurement point display, Group comparison, Unacceptable value history, Trend display, Statistical processing, Mutual interference prevention, Application function, etc.
Power Supply Voltage
24 VDC ±10%
Current Consumption
1.2 A max.
Enclosure Rating
IP64 (Panel surface only)
Ambient Temperature
0 to +40°C
Relative Humidity
35 to 85%, (No condensation)
Measuring Heads
Measuring Range
0,3 - 30mm
Smalest Detectable Object
0,3mm
Light Source
GaN green LED
CCD Scanning Range
approx. 33mm
Measurement Accuracy
(plus minus) 2μm
Repeatability
(plus minus) 0,15μm
Monitor Camera
2400 samples/sec
Enclosure Rating
IP64
Ambient Temperature
0 to +50℃
Relative Humidity
35 to 85%, (No condensation)
The AXL.LDM.001 complies with the following European standards: EMC Directive: EN61326-1D60 Low-voltage directive: EN60825-1 (LED class 1)/EN61010-1 (Overvoltage category II, Pollution degree 2)

Request a quote

Thank you for contacting AXL Imperial.
We'll get back to you shortly!
Close window

Precision.
Speed.
Durability.

External Diameter
Measurement Machines
for in-line industrial use
Precise
Measurement
& lump detection
Down to
0,5μ
2-axis laser
measurement
3-axis available upon request

24/7 - 365

Industry never sleeps. Axl Imperial's parts are designed and assembled to allow operation under the most rough industrial conditions. The product measurements and inspections may be uninterupted 24/7 to serve the most demanding production needs.

Features

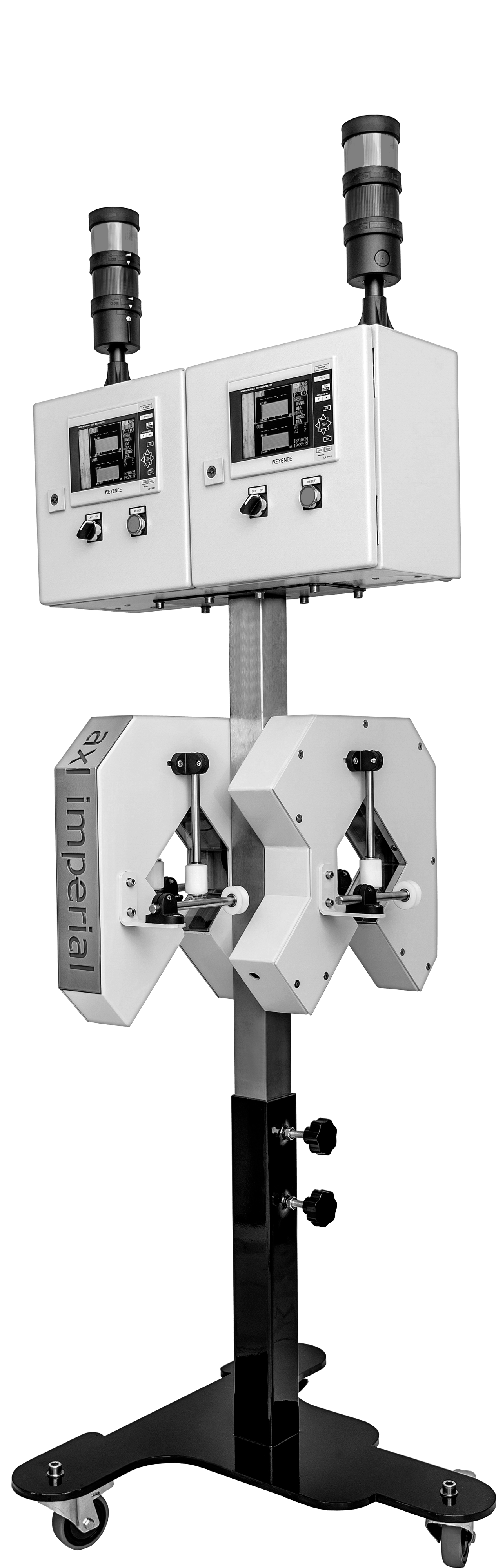

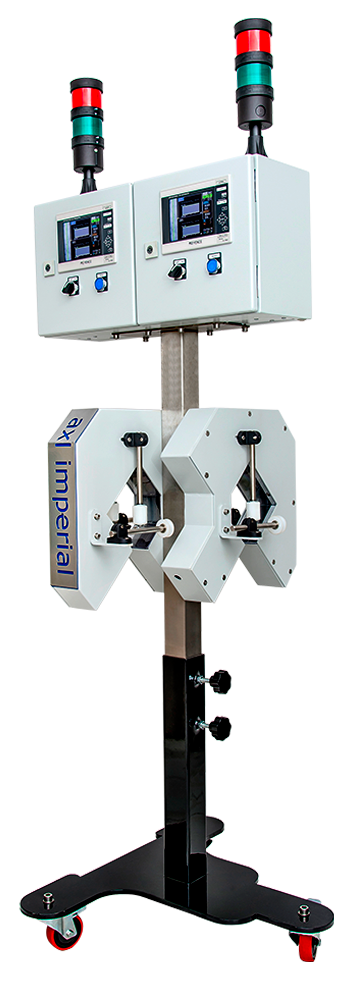

Showing AXL.LDM.002

Interface

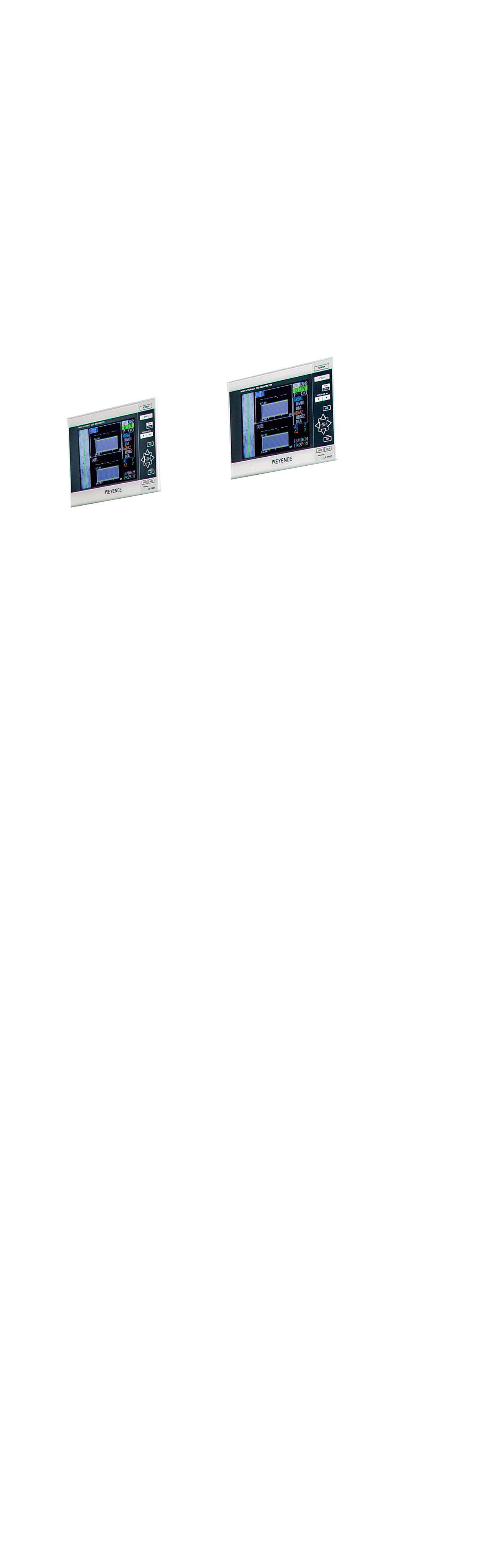

LCD monitor with video image output

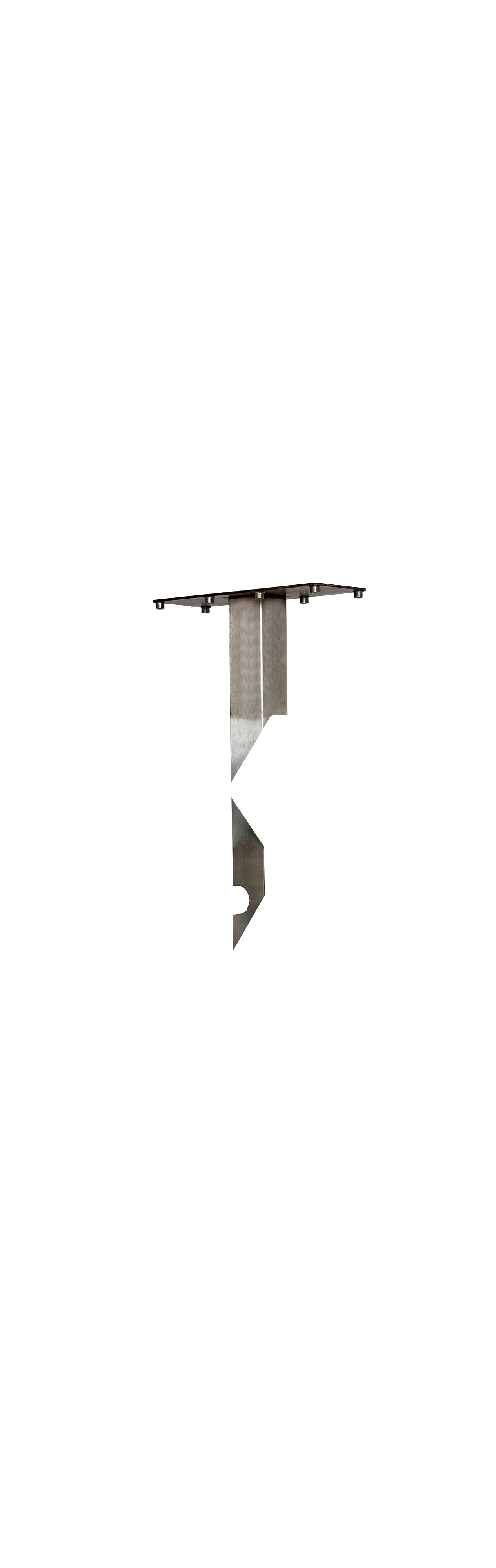

Heavy duty

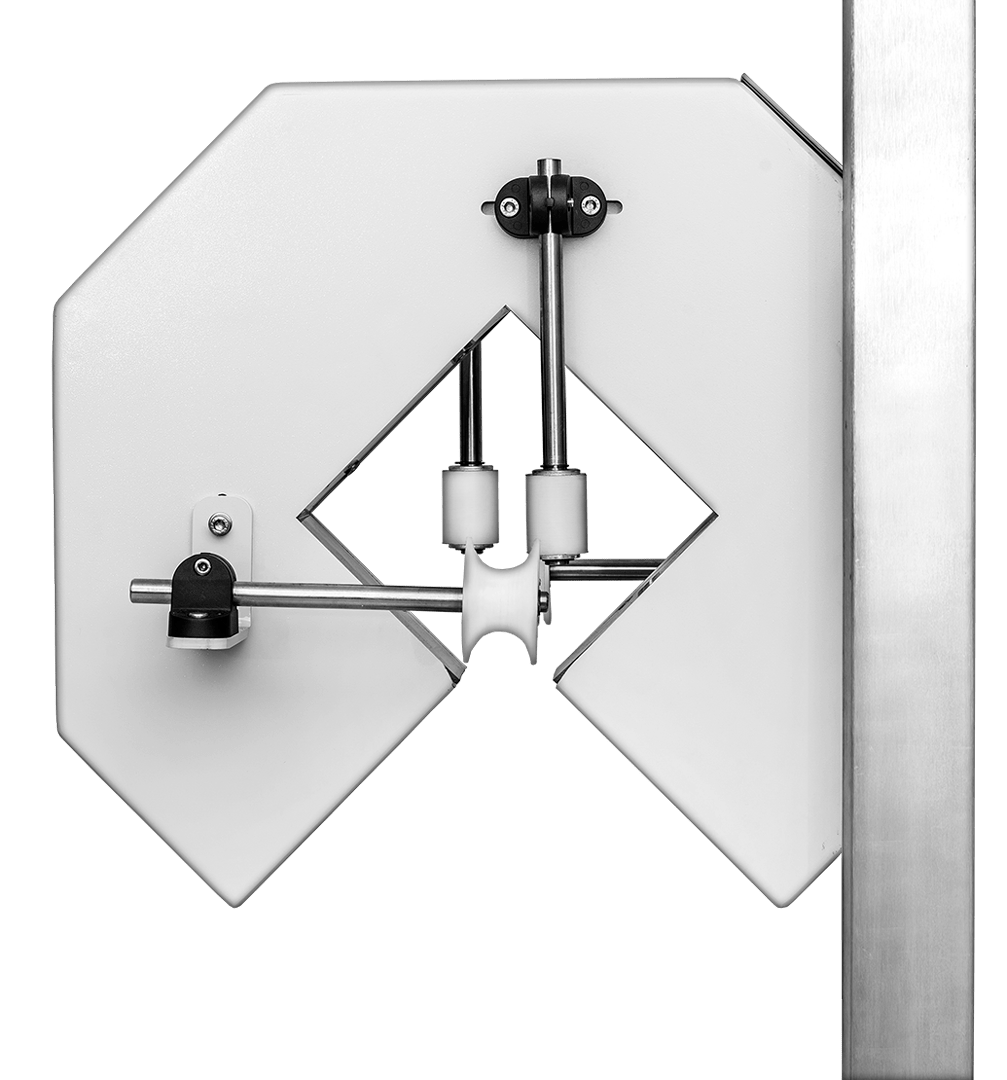

Robust metal construction for harsh industrial environments and enhanced durability inside-out

Sensor
Protection

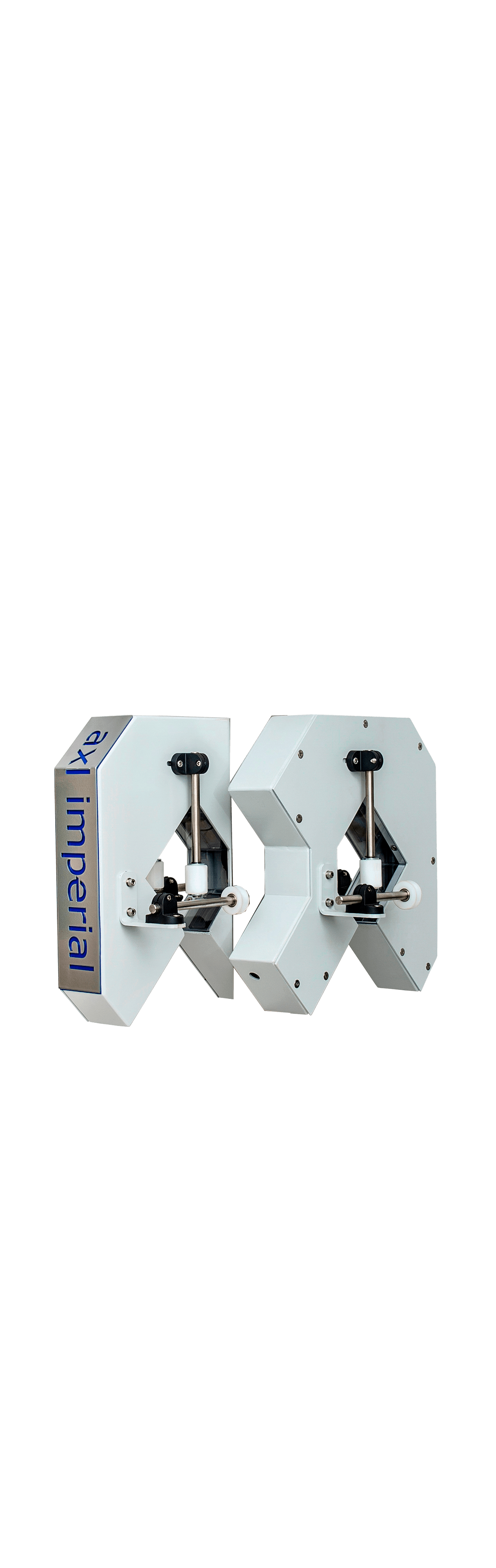

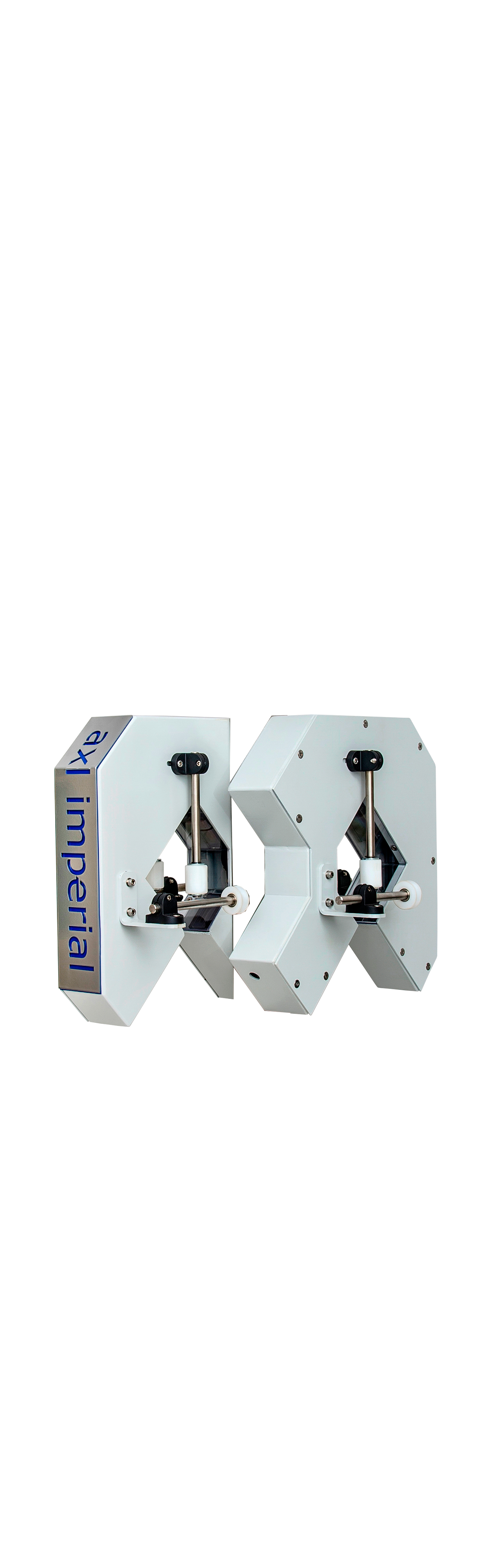

Protective and durable Plexiglas covers the sensor heads protecting from water, dust and oils

Double
Operation

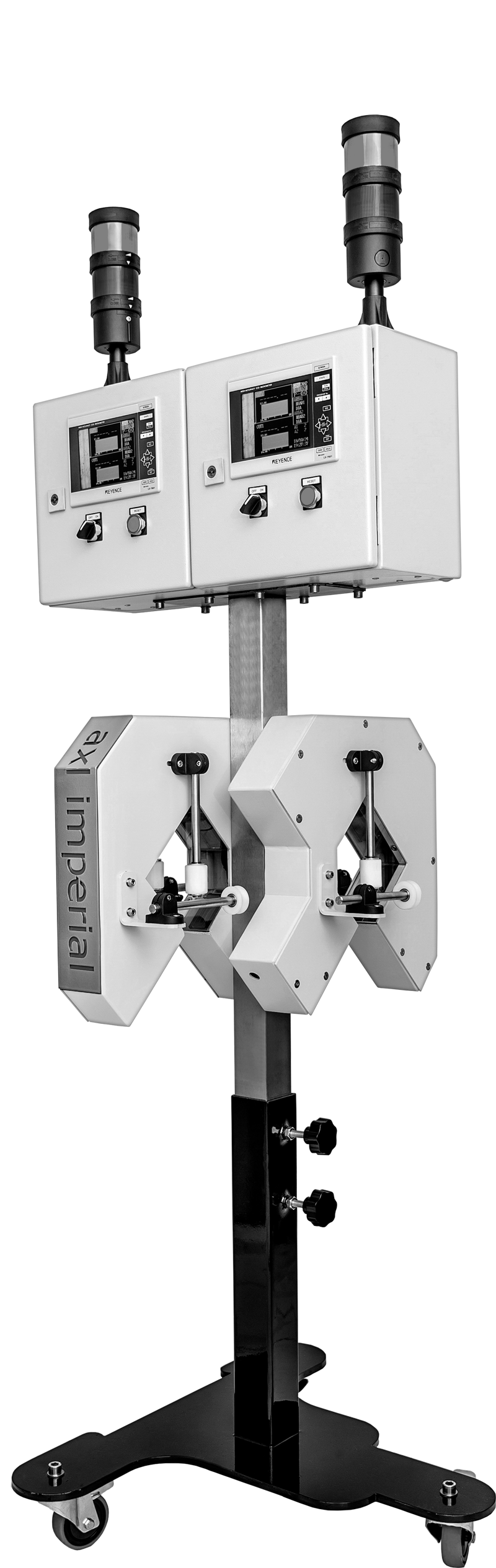

Capable of handling two production lines at once

Sensors and
controllers
powered by

Keyence, one of the leading
sensor manufacturers worldwide
has provided the sensor heads
and controllers used to ensure
ultimate accuracy and top
performance.

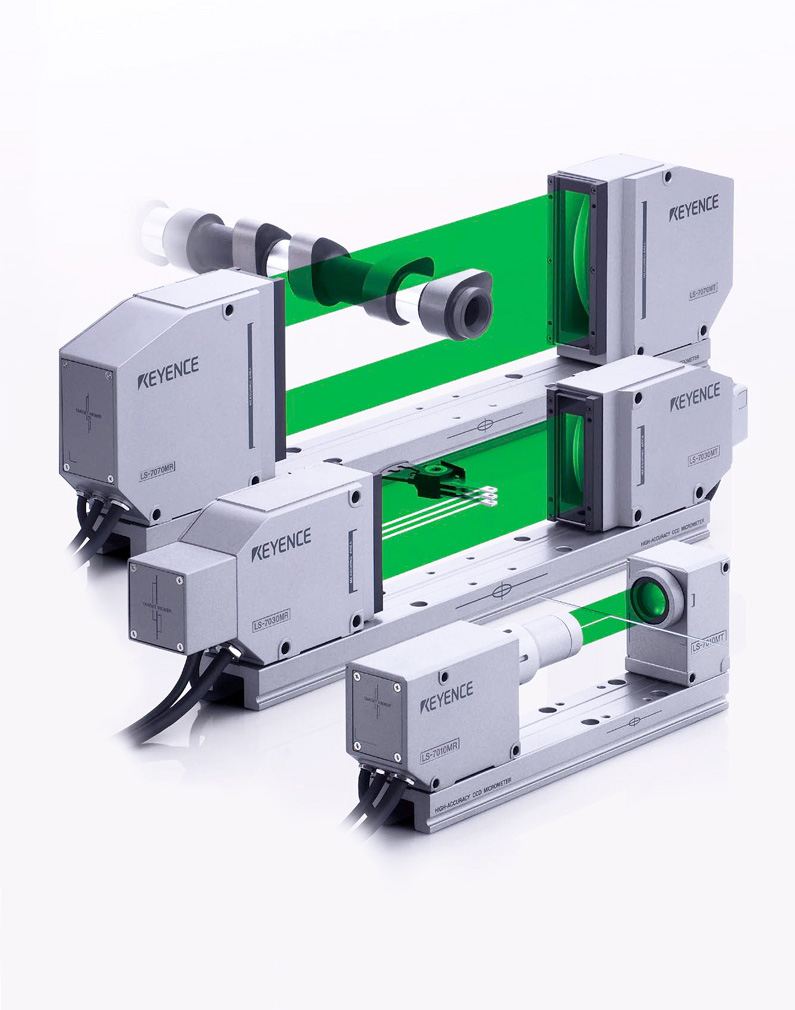

keyence range

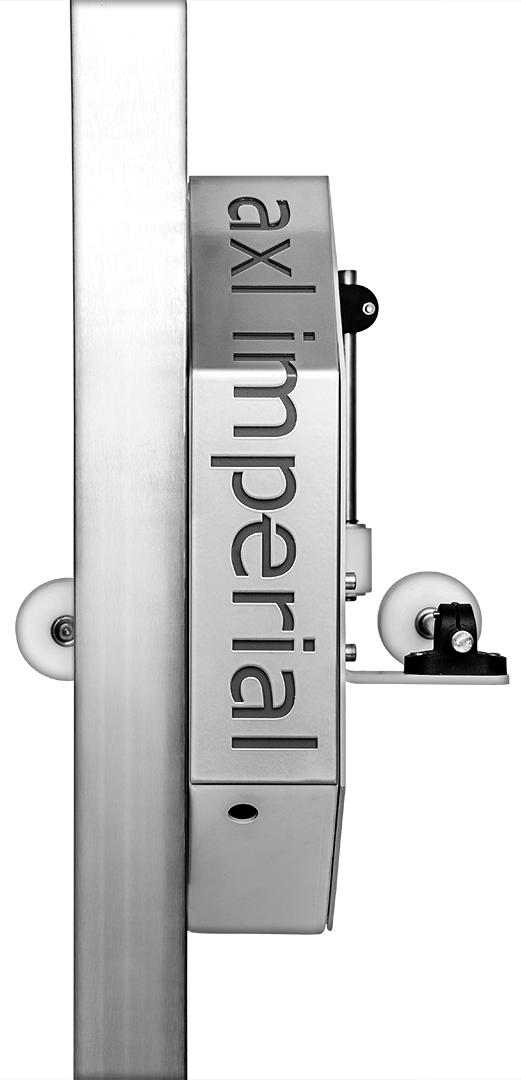

Stability
in rough
environments

Extreme resistance to shock, drifts
and temperature variations.

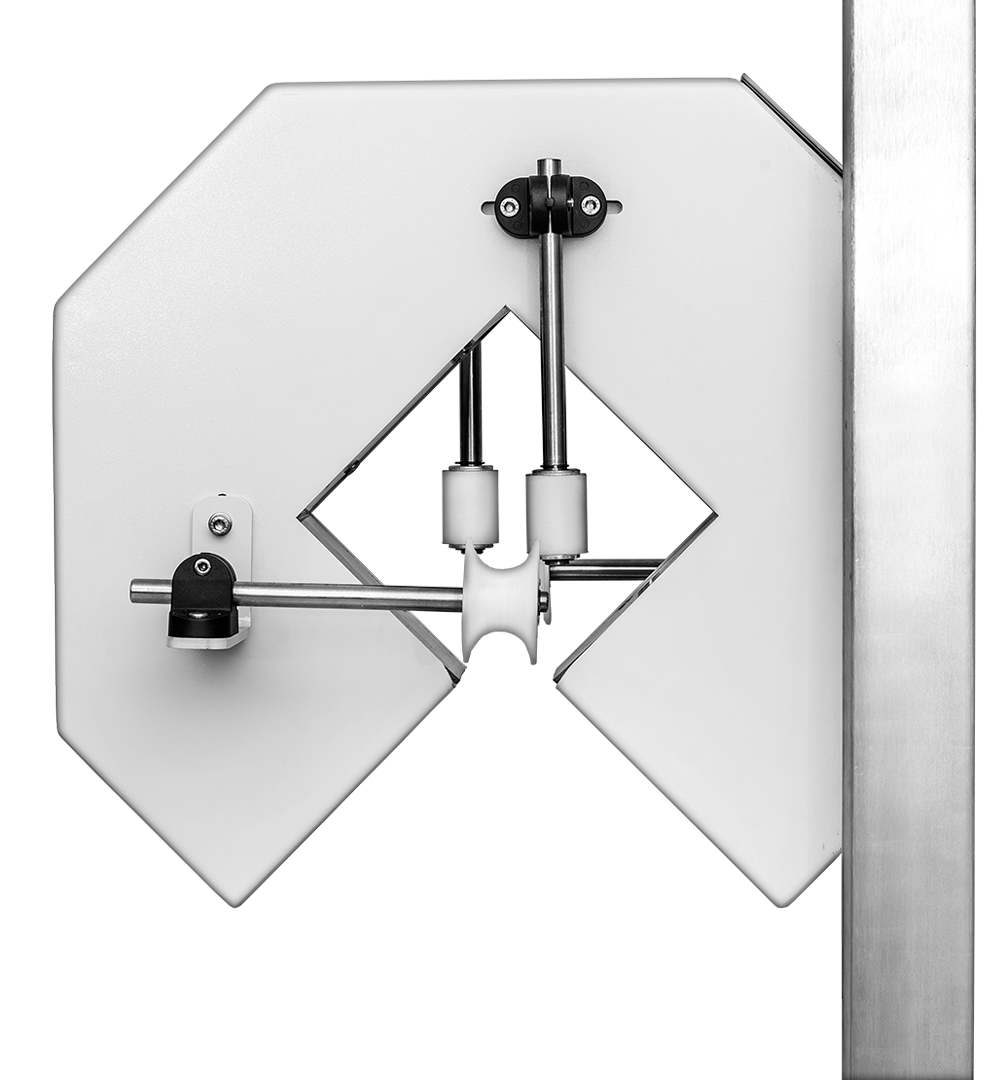

Variable length handles ensure
perfect alignment.

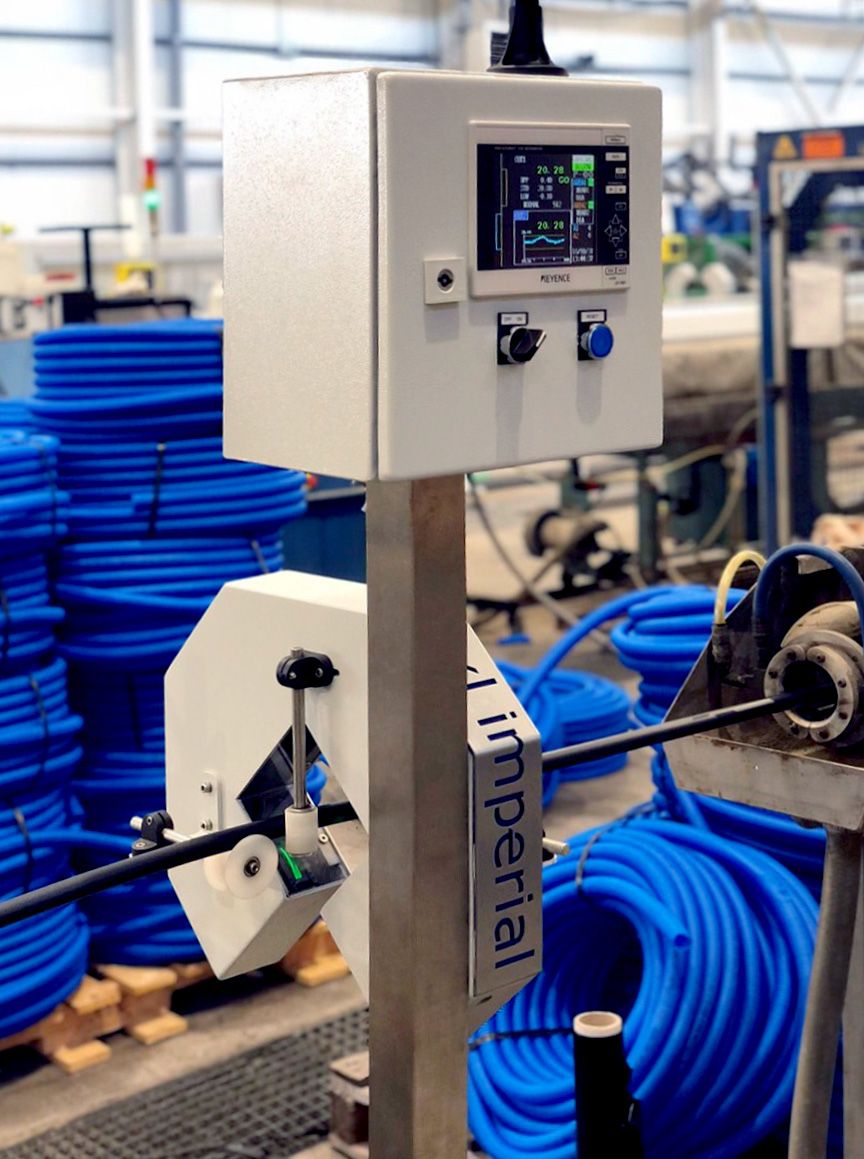

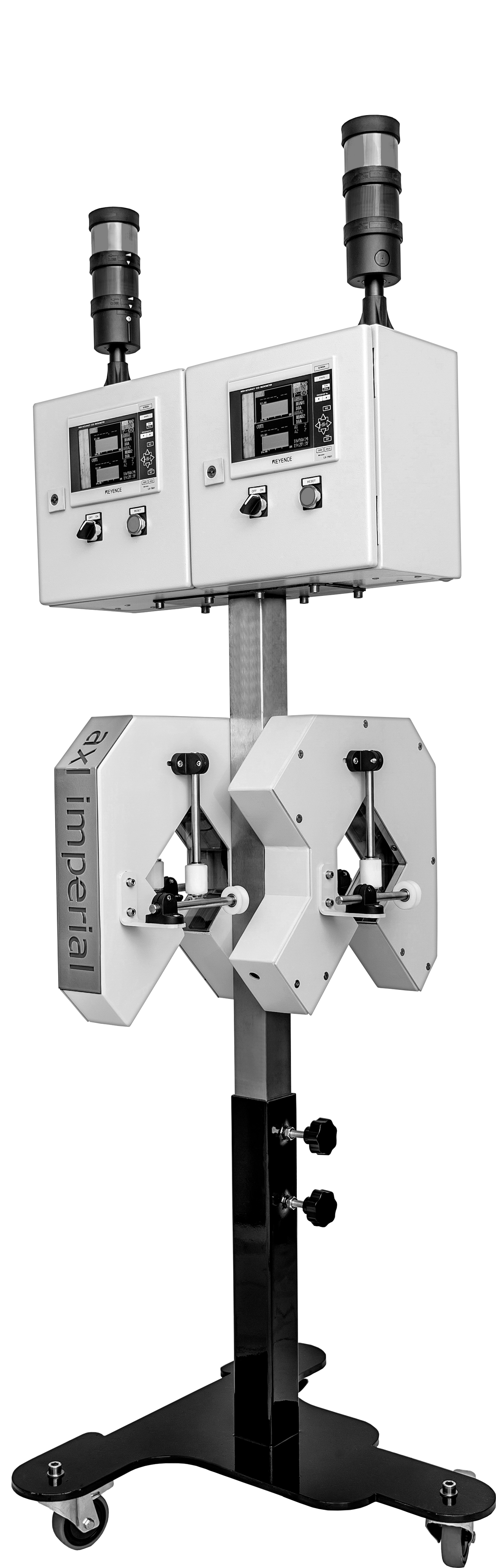

axl imperial in factory

Suitable
for all types
of materials.

All kinds of
products.

axl imperial in factory axl

Did you know?

AXL Imperial machines can be built to match your exact production needs in a large variety of measuring diameters and produts. Send us your needs today and get a financial offer for a machine customized to your needs.
Contact Us

Our standard models

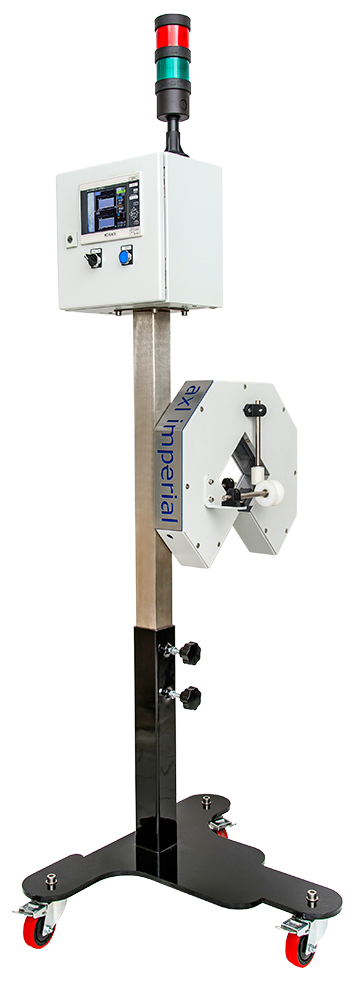

AXL.LDM.001
Specifications
AXL.LDM.002
Specifications
  • Interface
  • Heavy duty
  • Sensor protection
  • Double operation
Large Range in diameter measurement and inspection
Large Range in diameter measurement and inspection
AXL.LDM.001
Specifications
AXL.LDM.002
Specifications
