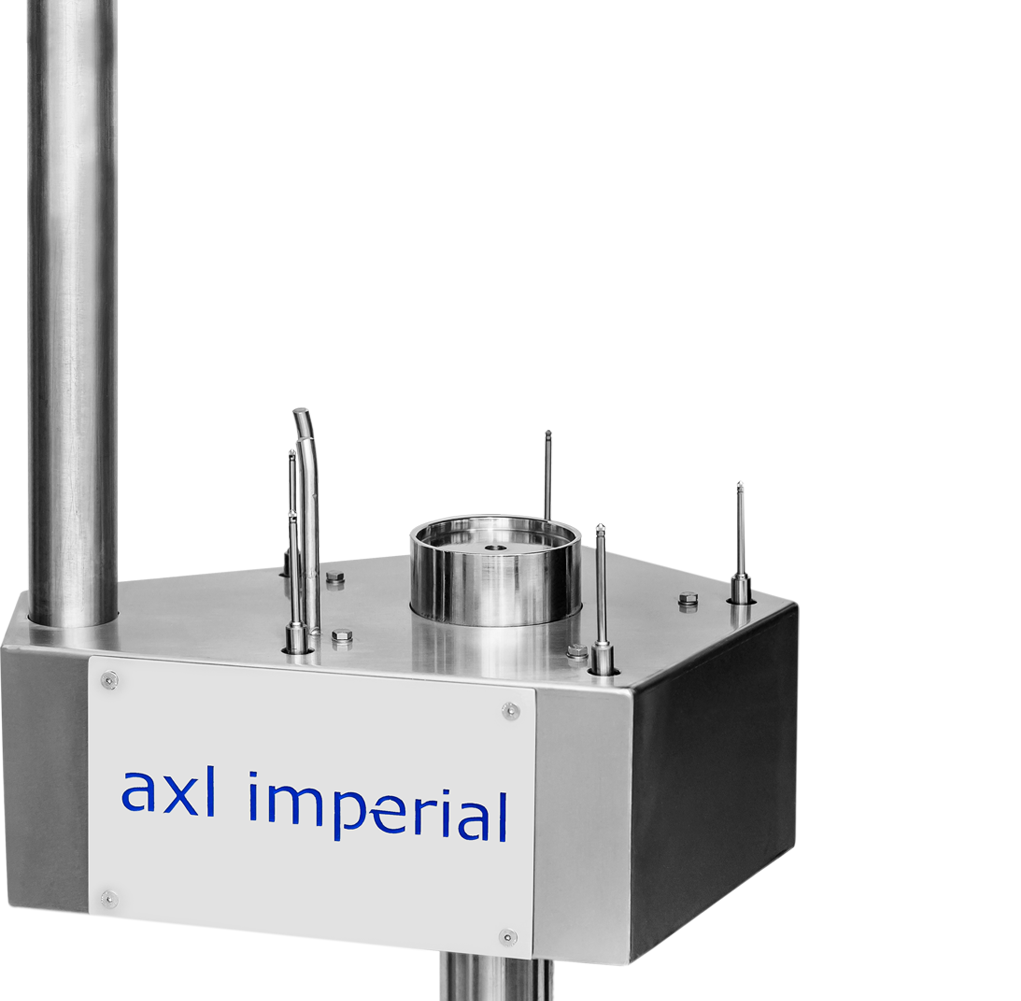

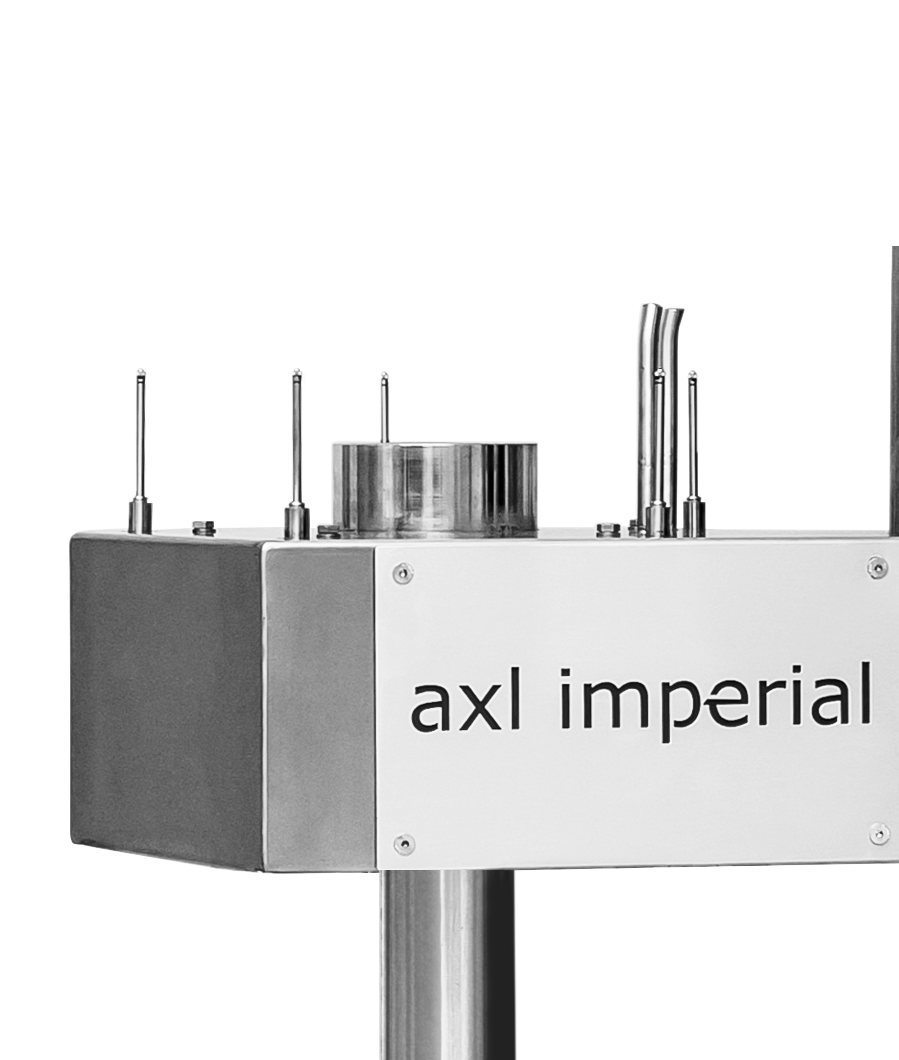

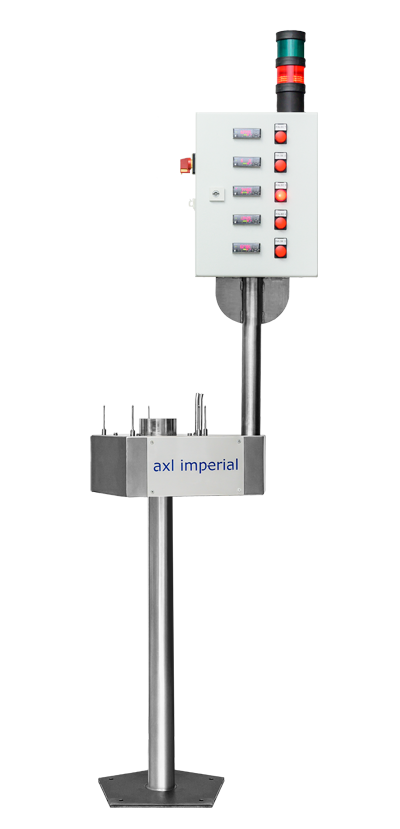

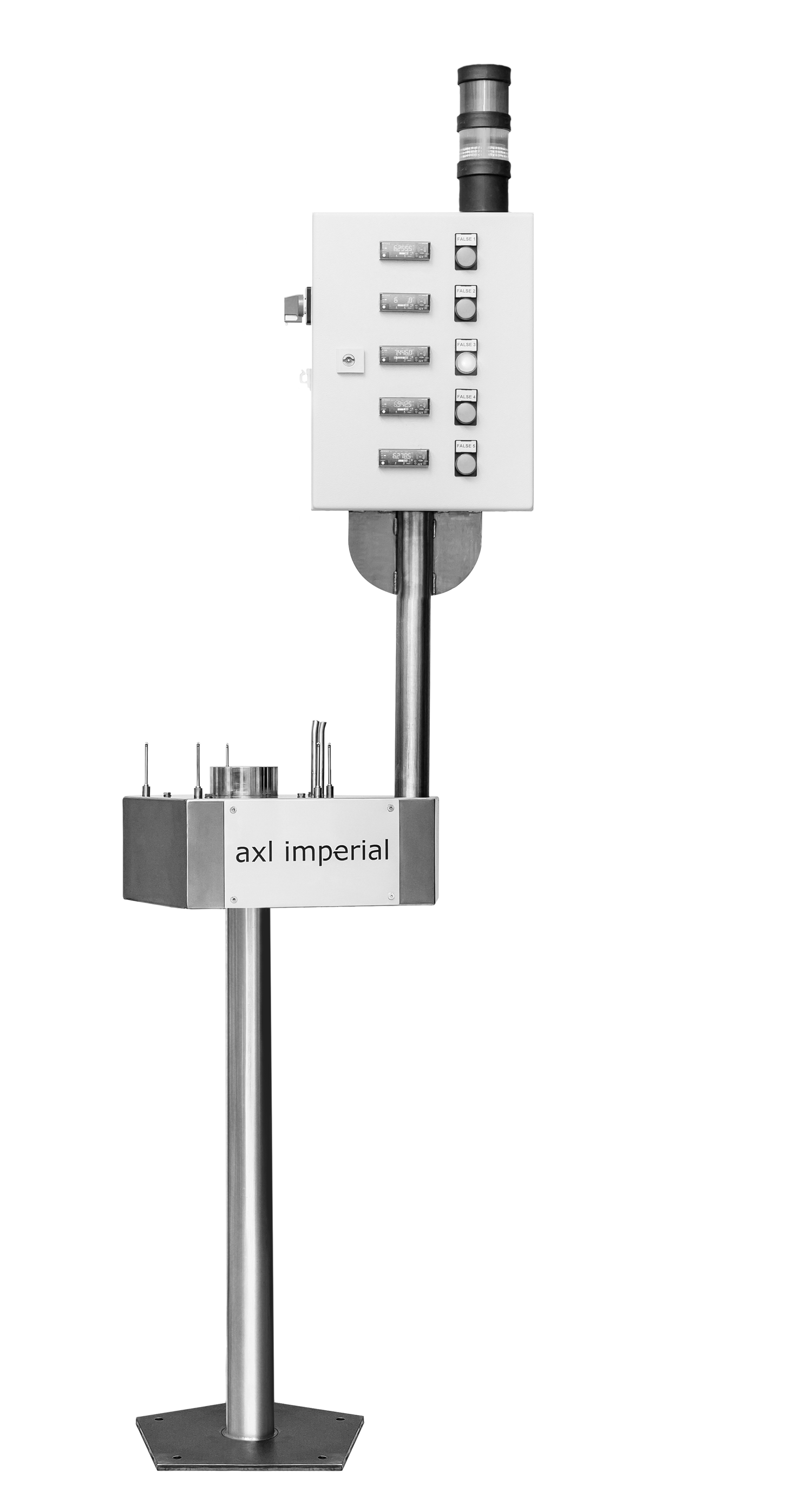

AXL.FMM.001

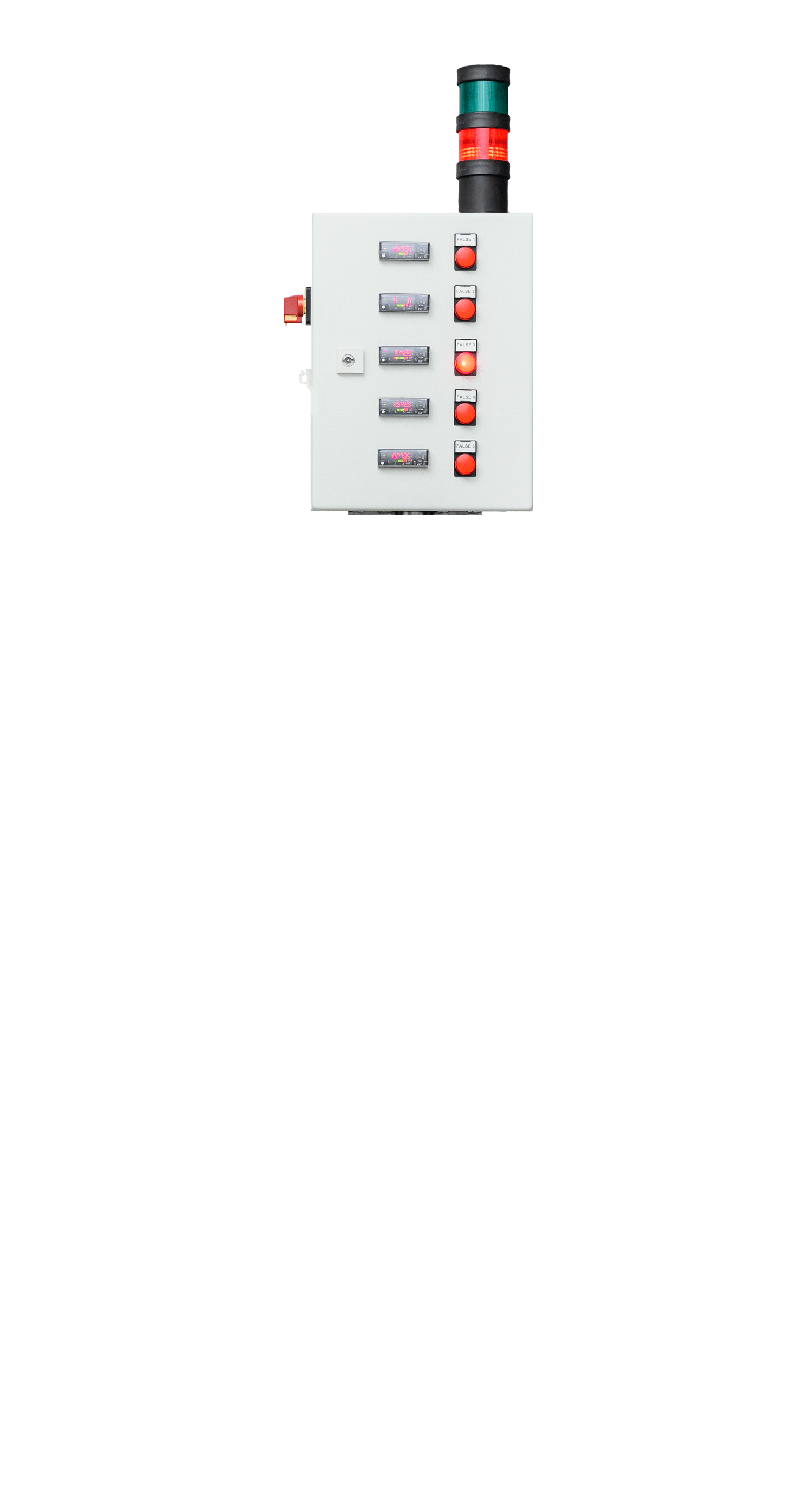

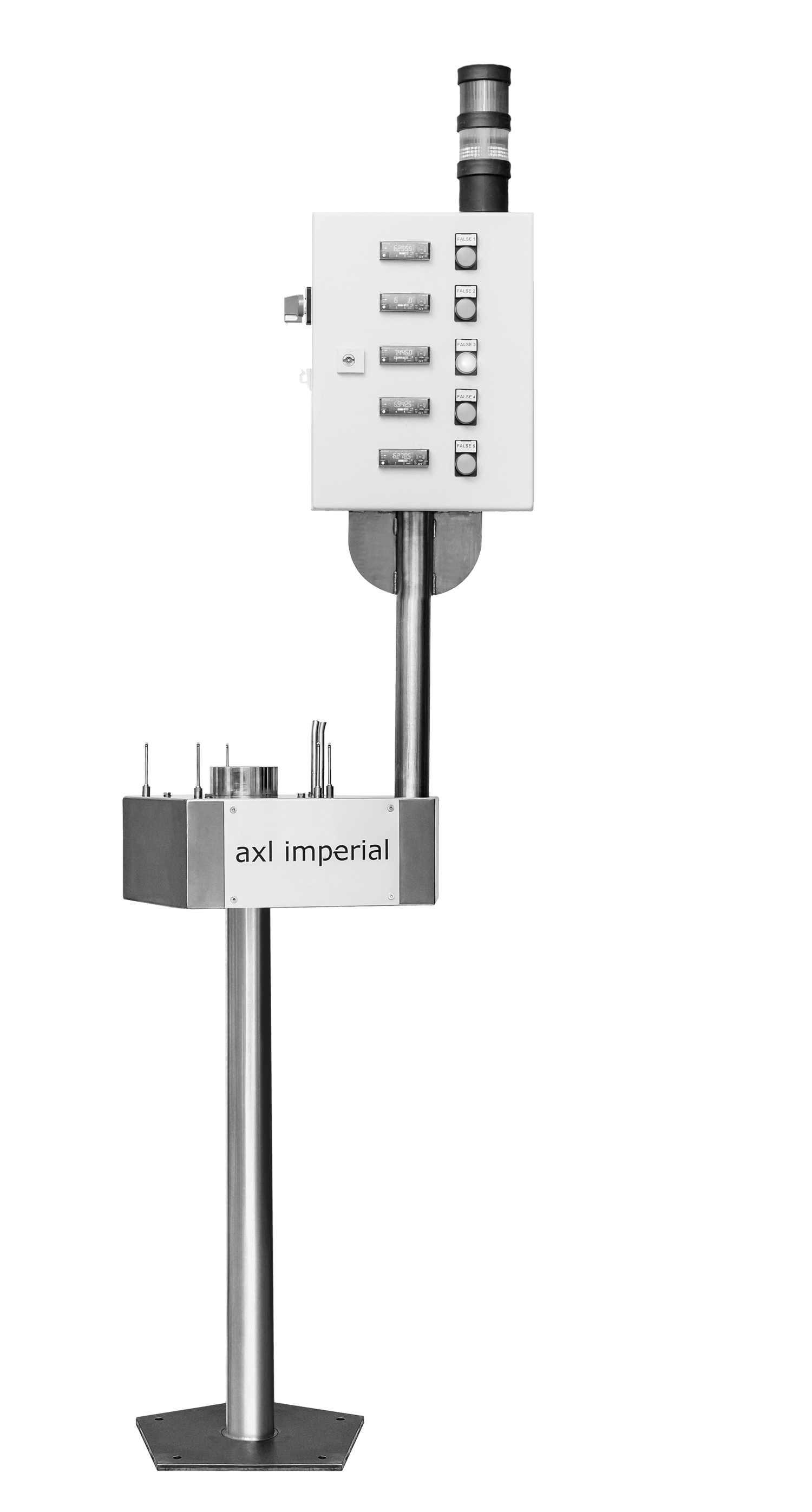

Controller
Display
TFT 5.5 inch LCD
Minimum Display Unit
0,01 to 100μm (7-level selectable)
Diplay Range
(plus minus) 99.99999 to (plus minus) 9999.9 mm
Measurement Position Monitor
Monitor Image
Tolerance Check Output Display
5-level LCD indicator
Alarm output
NPN open -collector output
5-level Comparator Output
NPN open-collector output for OUT1
Comparator Ready Output
NPN open-collector output for OUT2
Strobe Output
NPN open-collector output for OUT3
Synchronous Input
Non - voltage input for OUT1
Reset Input
Non - voltage input for OUT2
Auto-Zero Input
Non - voltage input for OUT3
Program Selection Input
Non-voltage input x 4 inputs
Statistical Processing Input
Non - voltage input for OUT1
Analog Output
10V x 2 outputs
Sub Mode
5-level comparator output
NPN open-collector output for OUT2
Comparator ready output
NPN open-collector output for OUT2
Strobe output
NPN open-collector output for OUT2
Statistical processing output
NPN open-collector output x 2 outputs
Function output
Selectable from focus, area check, and differential, NPN open-collector output x 2 outputs
BCD Mode
BCD output
Measurement data output (Sign + 7 digits), OUT1/OUT2 selectable, NPN open-collector output
BCD selection output
NPN open-collector output
BCD selection input
Non-voltage input
Synchronous Input
Non - voltage input for OUT2
Reset Input
Non - voltage input for OUT2
Auto-Zero Input
Non - voltage input for OUT2
Statistical Processing Input
Non - voltage input for OUT2
RS-232C Interface
Measurement data output and control I/O, printer (Baud rate can be selected uo to 115200 bps)
Video Output
Conforming to the NTSC system (PIN connector)
Major Functions
Simultaneous measurement, Area designation, Calculation, Averaging, Calibration, 16-program memory, Measurement modes, Auto-zero, Print-out, Abnormal value elimination, Transparent object measurement, Measurement point display, Group comparison, Unacceptable value history, Trend display, Statistical processing, Mutual interference prevention, Application function, etc.
Power Supply Voltage
24 VDC ±10%
Current Consumption
1.2 A max.
Enclosure Rating
IP64 (Panel surface only)
Ambient Temperature
0 to +40°C
Relative Humidity
35 to 85%, (No condensation)

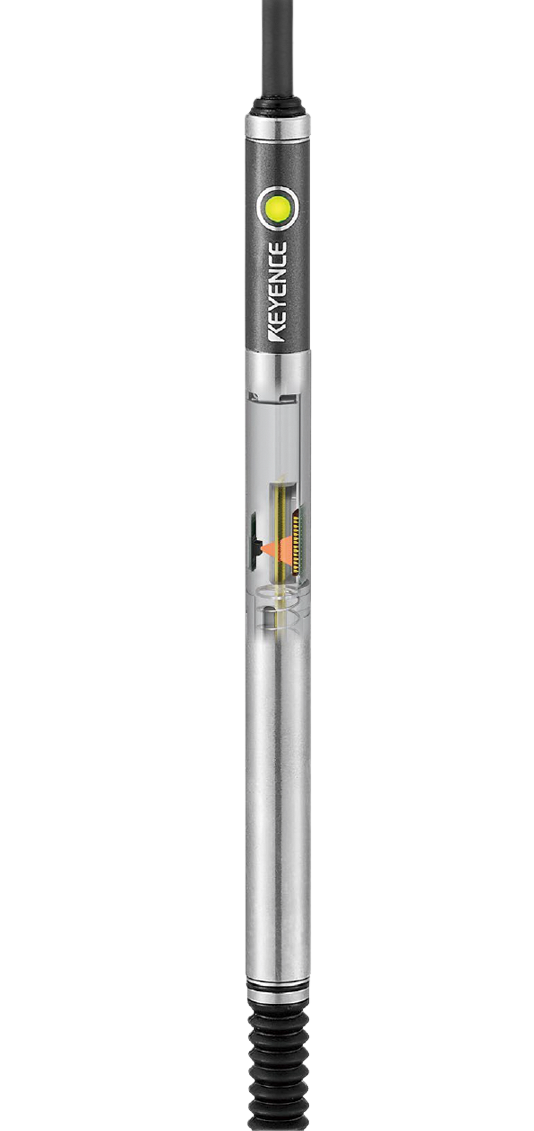

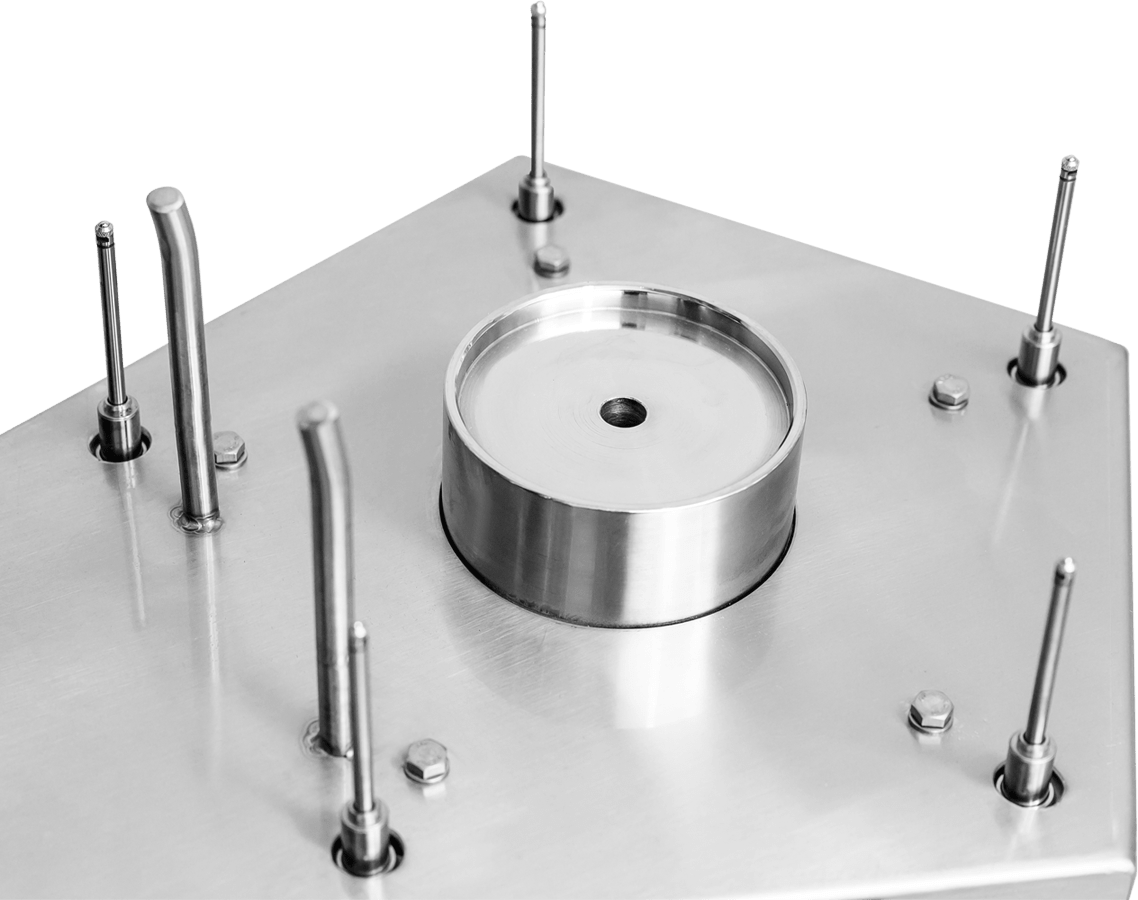

Measuring Heads
Measuring Range
0,3 - 30mm
Smalest Detectable Object
0,3mm
Light Source
GaN green LED
CCD Scanning Range
approx. 33mm
Measurement Accuracy
(plus minus) 2μm
Repeatability
(plus minus) 0,15μm
Monitor Camera
2400 samples/sec
Enclosure Rating
IP64
Ambient Temperature
0 to +50℃
Relative Humidity
35 to 85%, (No condensation)
The AXL.LDM.001 complies with the following European standards: EMC Directive: EN61326-1D60
Low-voltage directive: EN60825-1 (LED class 1)/EN61010-1
(Overvoltage category II, Pollution degree 2)
