Specifications

PDF
AXL.LPTM.001
Controller
Display
TFT 5.5 inch LCD
Minimum Display Unit
0,01 to 100μm (7-level selectable)
Diplay Range
(plus minus) 99.99999 to (plus minus) 9999.9 mm
Measurement Position Monitor
Monitor Image
Tolerance Check Output Display
5-level LCD indicator
Alarm output
NPN open -collector output
5-level Comparator Output
NPN open-collector output for OUT1
Comparator Ready Output
NPN open-collector output for OUT2
Strobe Output
NPN open-collector output for OUT3
Synchronous Input
Non - voltage input for OUT1
Reset Input
Non - voltage input for OUT2
Auto-Zero Input
Non - voltage input for OUT3
Program Selection Input
Non-voltage input x 4 inputs
Statistical Processing Input
Non - voltage input for OUT1
Analog Output
10V x 2 outputs
Sub Mode
5-level comparator output
NPN open-collector output for OUT2
Comparator ready output
NPN open-collector output for OUT2
Strobe output
NPN open-collector output for OUT2
Statistical processing output
NPN open-collector output x 2 outputs
Function output
Selectable from focus, area check, and differential, NPN open-collector output x 2 outputs
BCD Mode
BCD output
Measurement data output (Sign + 7 digits), OUT1/OUT2 selectable, NPN open-collector output
BCD selection output
NPN open-collector output
BCD selection input
Non-voltage input
Synchronous Input
Non - voltage input for OUT2
Reset Input
Non - voltage input for OUT2
Auto-Zero Input
Non - voltage input for OUT2
Statistical Processing Input
Non - voltage input for OUT2
RS-232C Interface
Measurement data output and control I/O, printer (Baud rate can be selected uo to 115200 bps)
Video Output
Conforming to the NTSC system (PIN connector)
Major Functions
Simultaneous measurement, Area designation, Calculation, Averaging, Calibration, 16-program memory, Measurement modes, Auto-zero, Print-out, Abnormal value elimination, Transparent object measurement, Measurement point display, Group comparison, Unacceptable value history, Trend display, Statistical processing, Mutual interference prevention, Application function, etc.
Power Supply Voltage
24 VDC ±10%
Current Consumption
1.2 A max.
Enclosure Rating
IP64 (Panel surface only)
Ambient Temperature
0 to +40°C
Relative Humidity
35 to 85%, (No condensation)
Measuring Heads
Measuring Range
0,3 - 30mm
Smalest Detectable Object
0,3mm
Light Source
GaN green LED
CCD Scanning Range
approx. 33mm
Measurement Accuracy
(plus minus) 2μm
Repeatability
(plus minus) 0,15μm
Monitor Camera
2400 samples/sec
Enclosure Rating
IP64
Ambient Temperature
0 to +50℃
Relative Humidity
35 to 85%, (No condensation)
The AXL.LDM.001 complies with the following European standards: EMC Directive: EN61326-1D60 Low-voltage directive: EN60825-1 (LED class 1)/EN61010-1 (Overvoltage category II, Pollution degree 2)

Request a quote

Thank you for contacting AXL Imperial.
We'll get back to you shortly!
Close window

Precision.

Speed.

Durability.

Mobility.

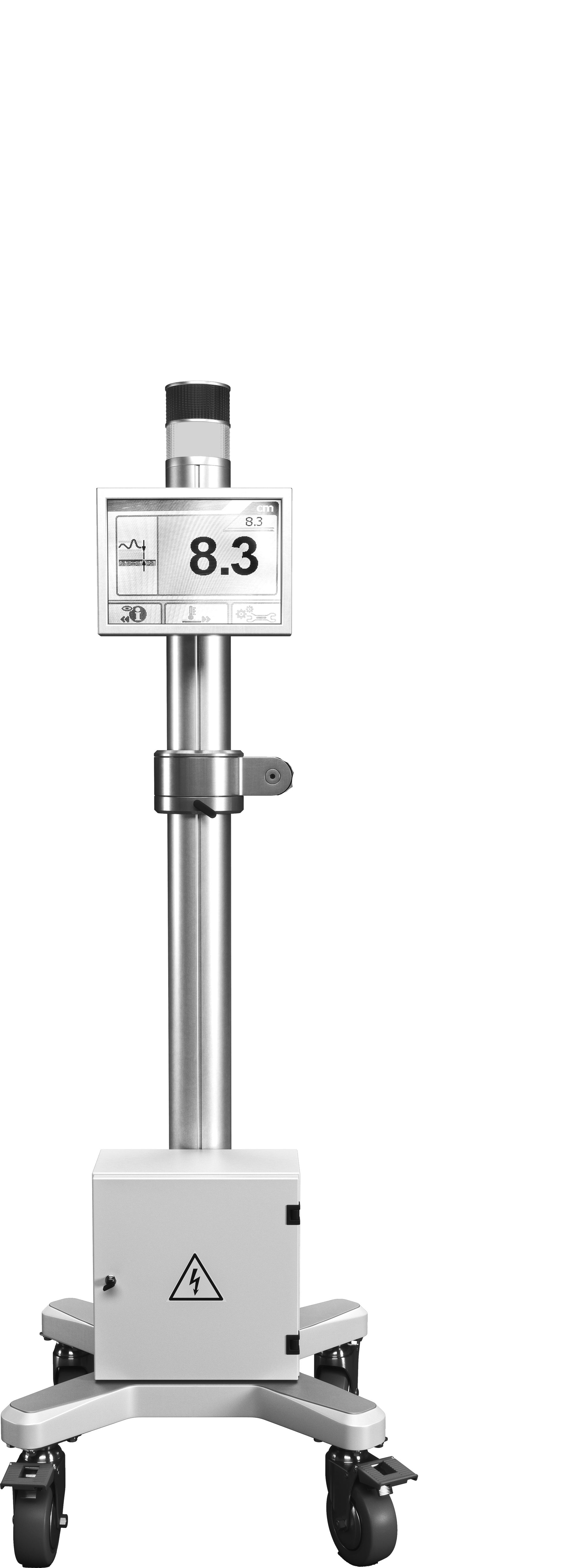

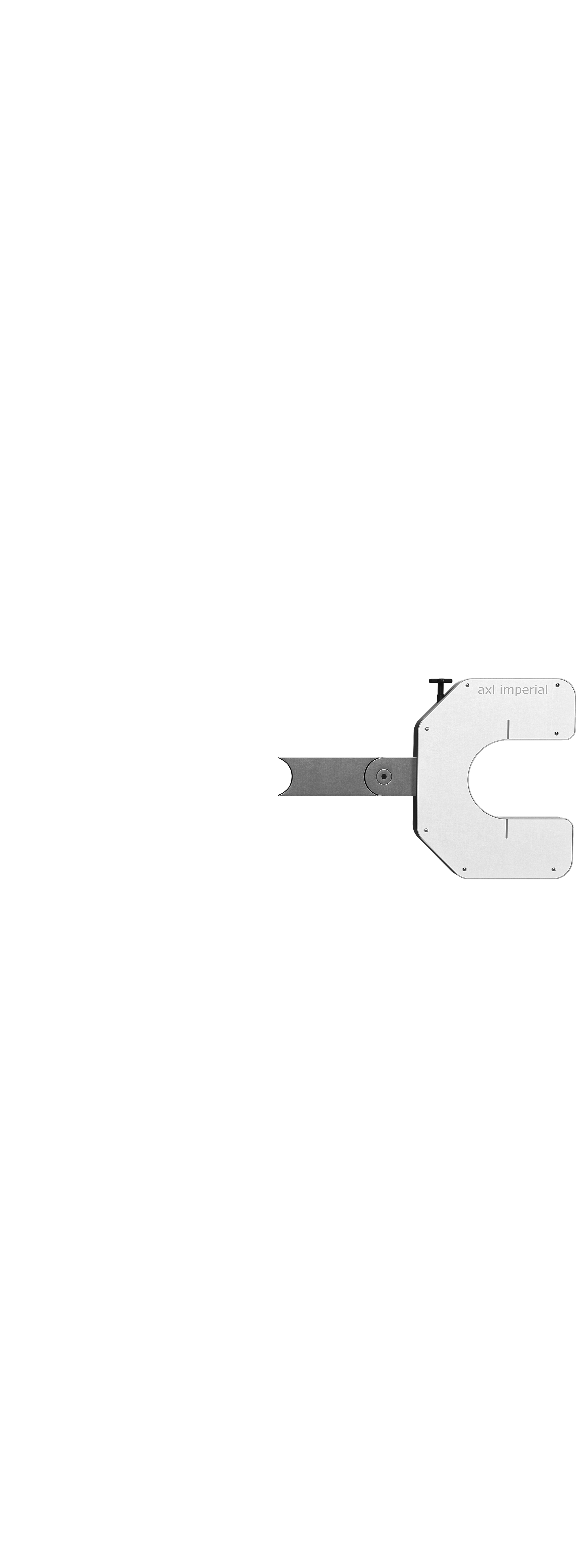

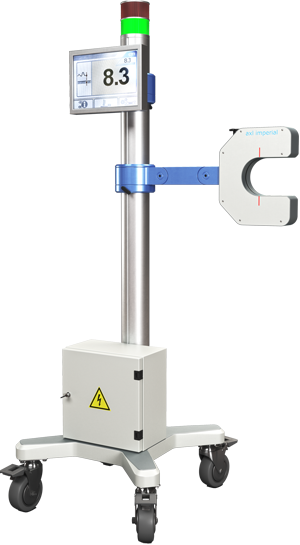

Thickness Measurement
Machine for in-line
industrial use.
Fast + Precise
measurement
Down to
0,3μ

Features

Interface

LCD monitor with image output

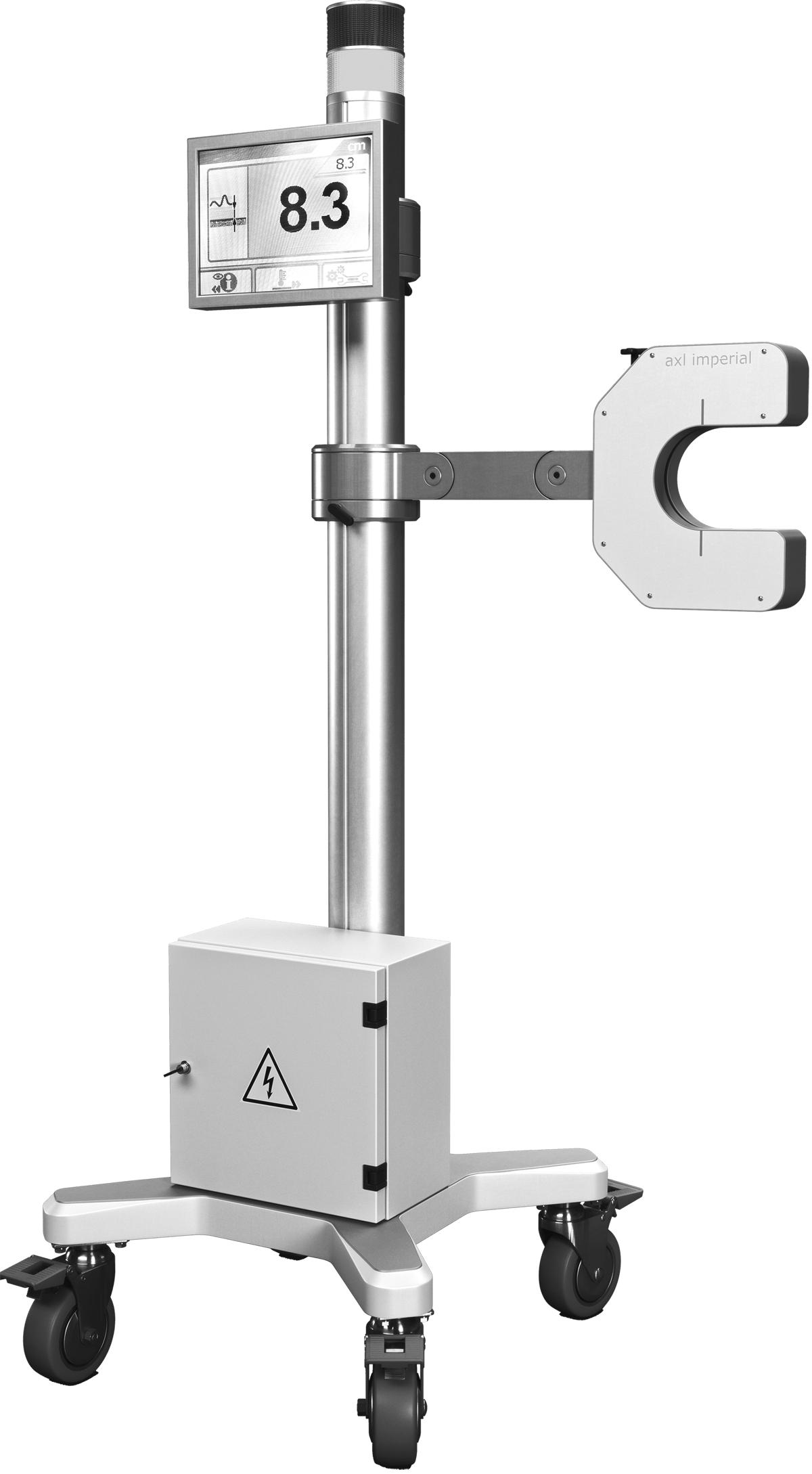

Heavy duty

Robust metal construction for harsh
industrial environments and
enhanced durability inside - out

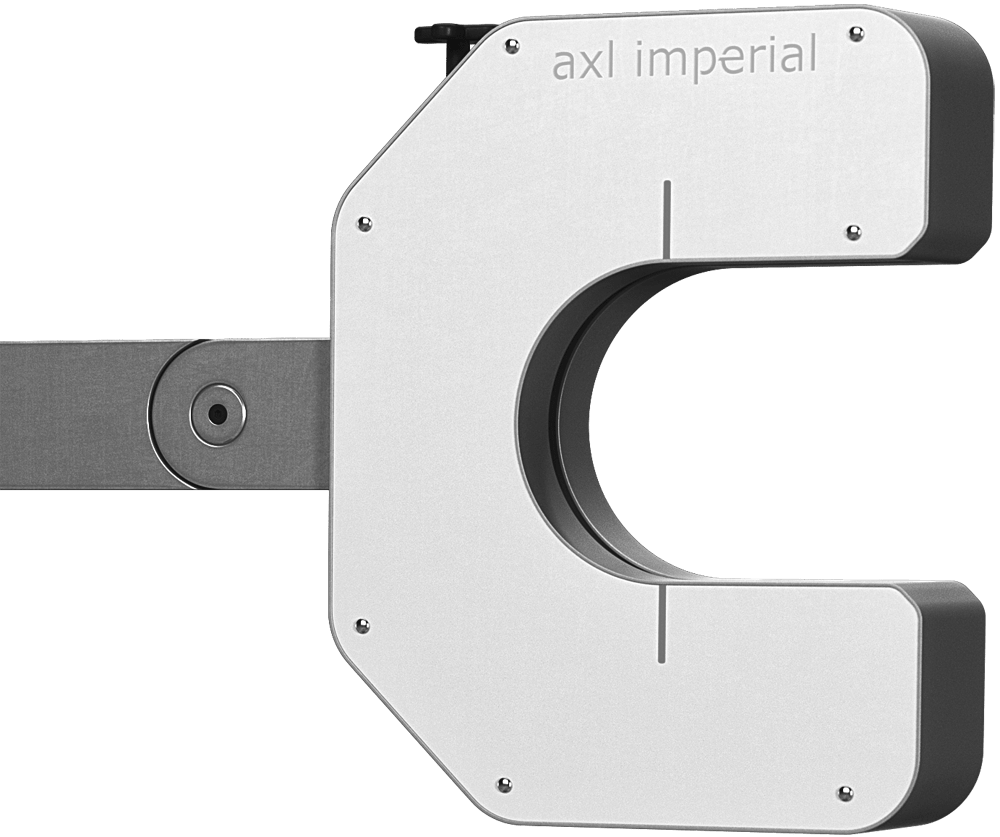

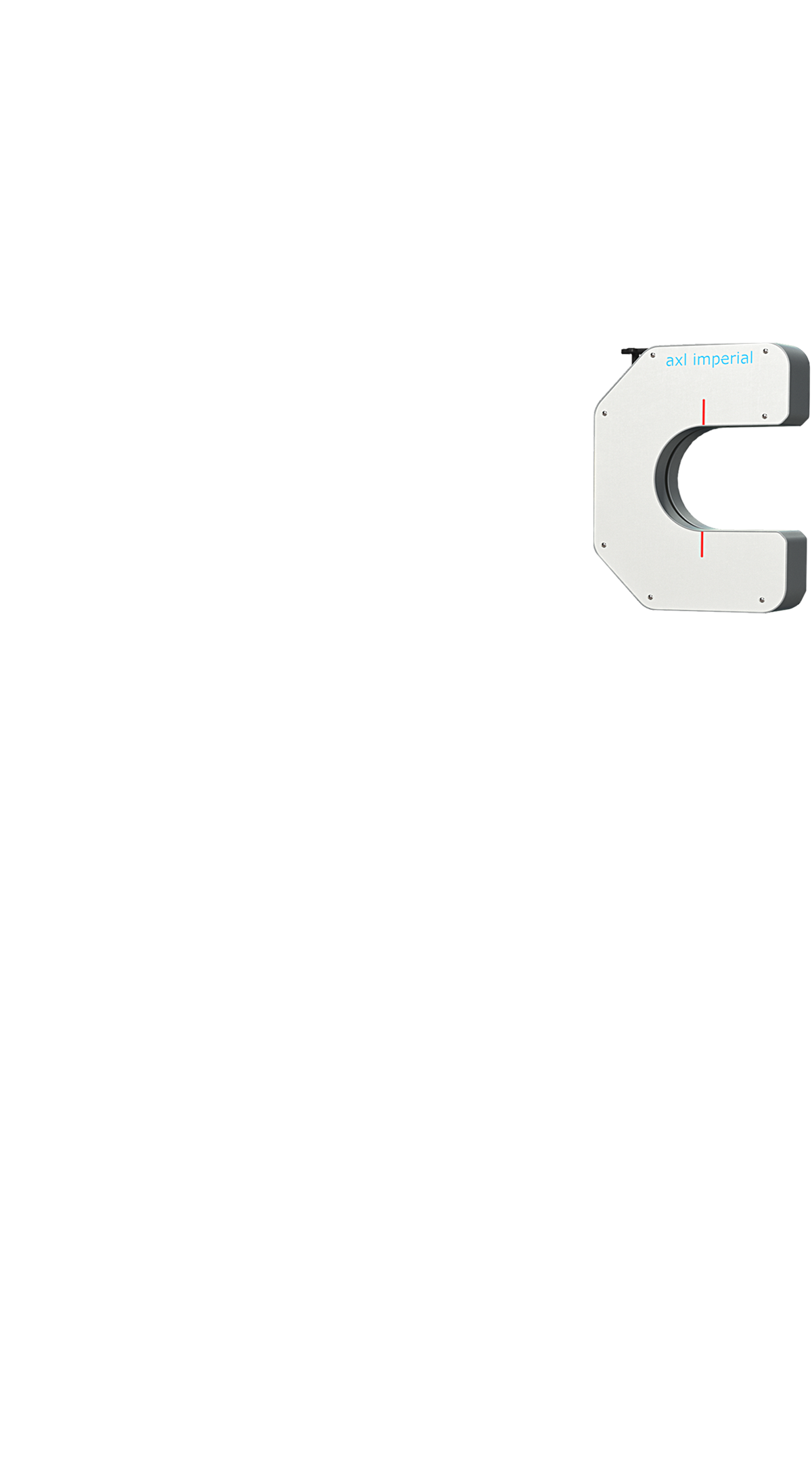

Sensor
Protection

Protective and durable Plexiglas
covers the sensor heads protecting
from water, dust and oils

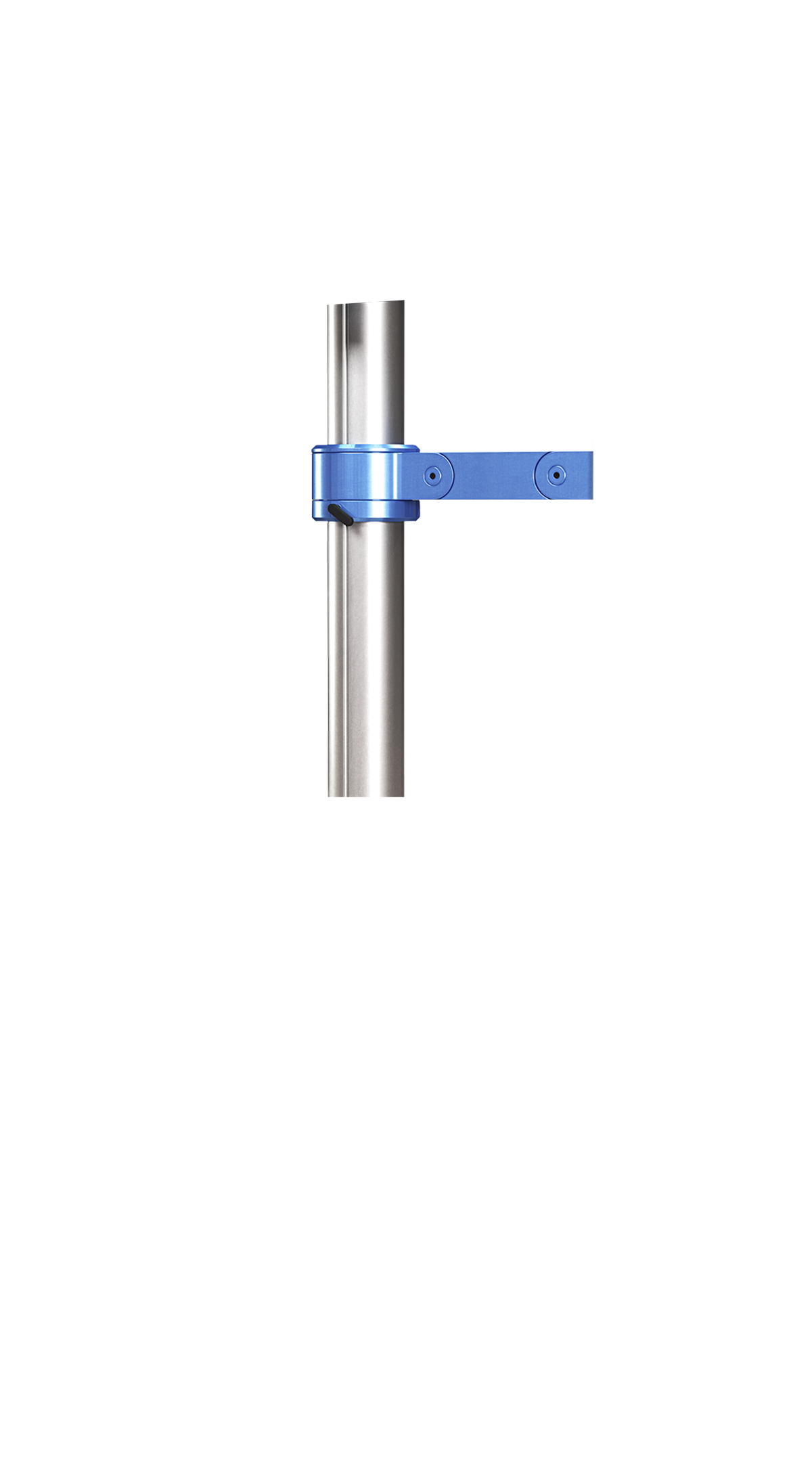

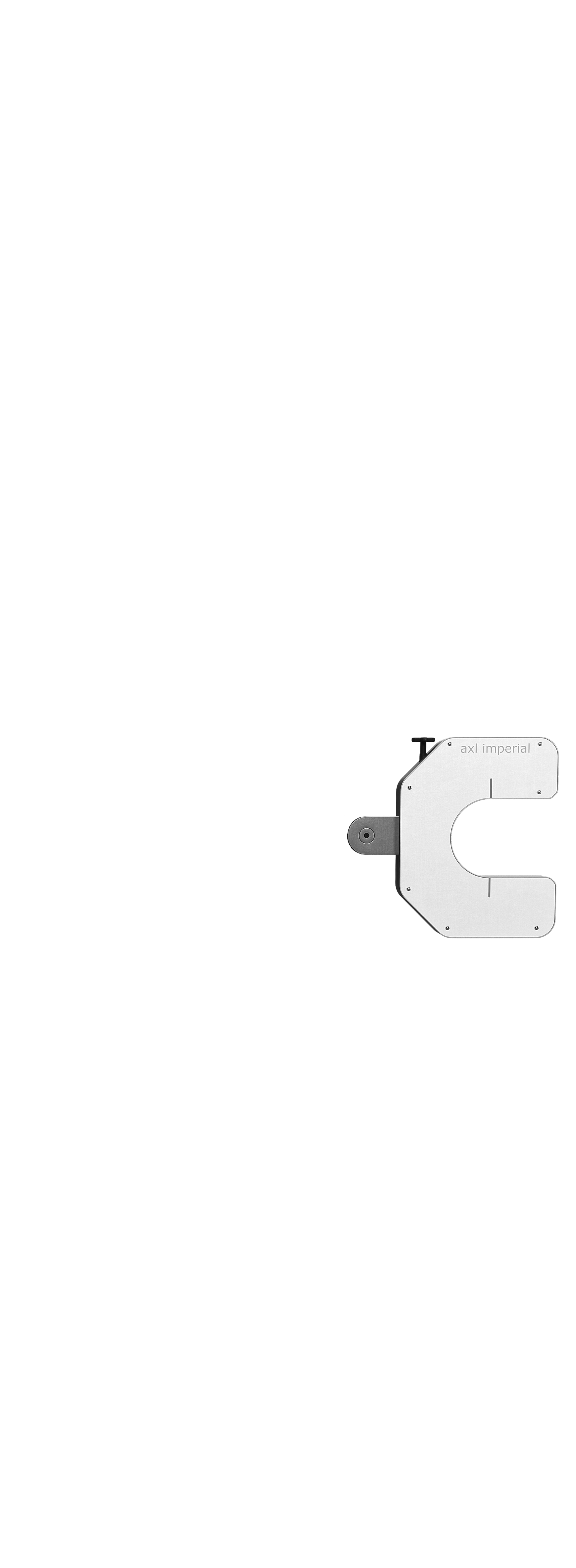

Metal
Structure

Strong materials have been used
both in the outer structure as well
as in the sensor heads to provide a
strong and durable ensemble for
hardcore, daily industrial use

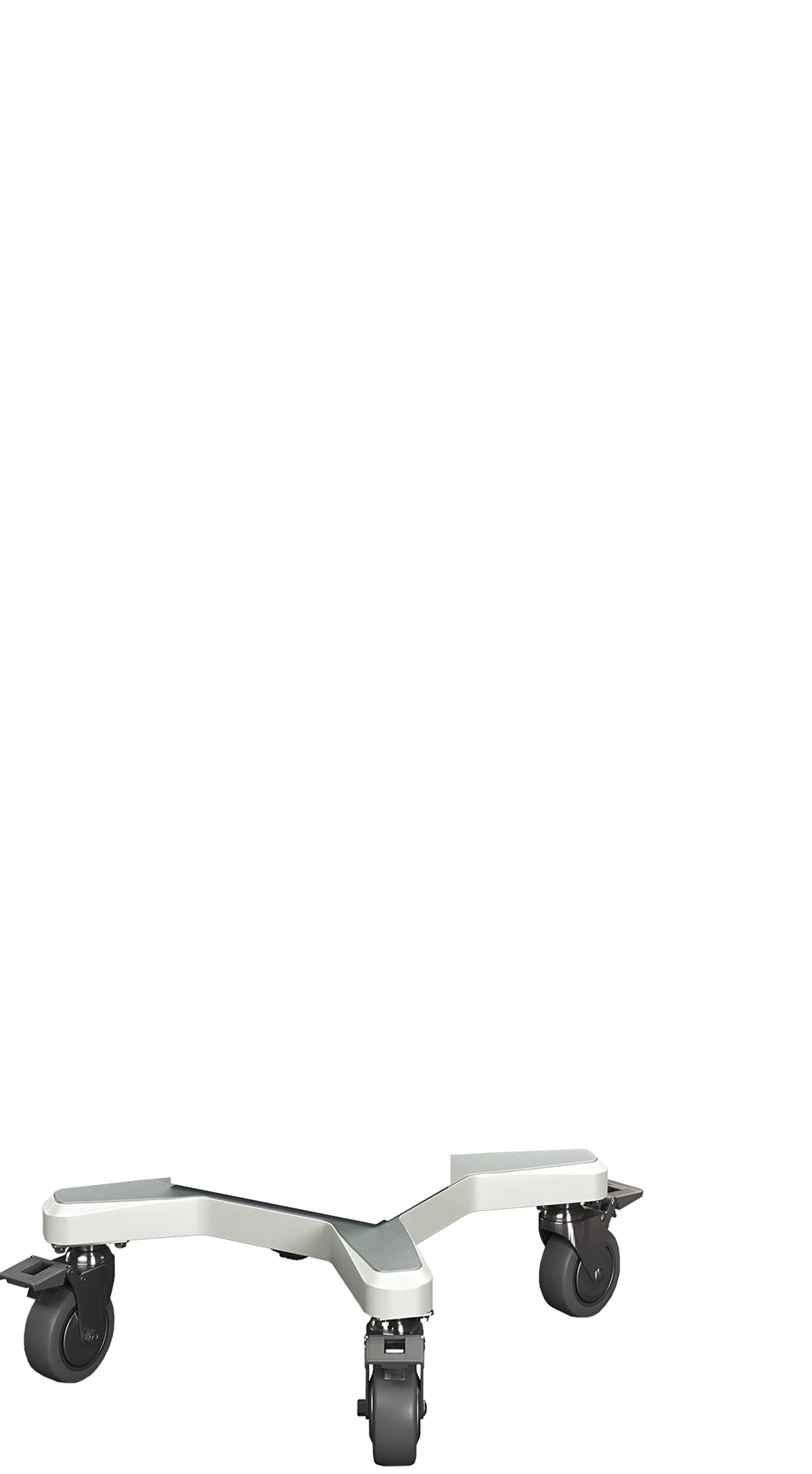

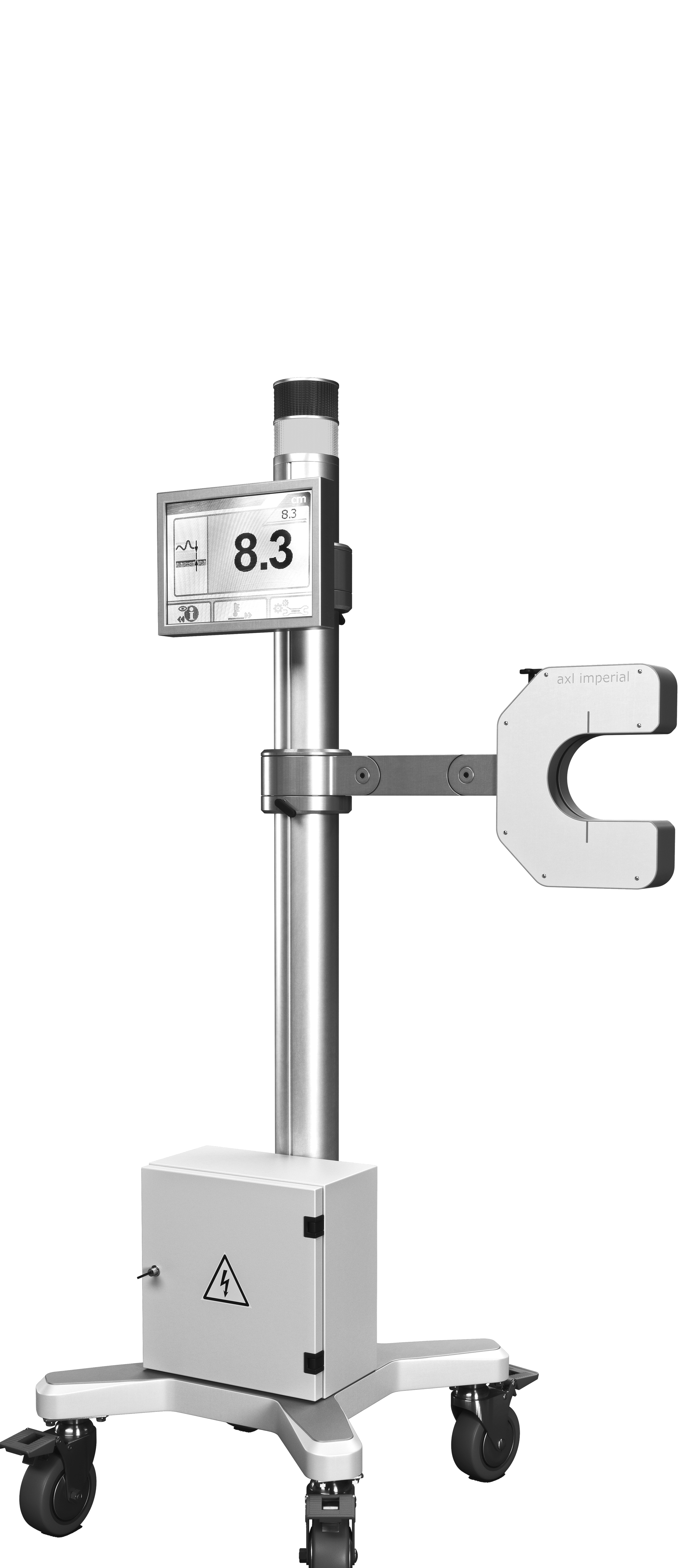

Transportable
Design

Wheel base for transporting
the device in several parts
of the production facility

Sensors and
controllers
powered by

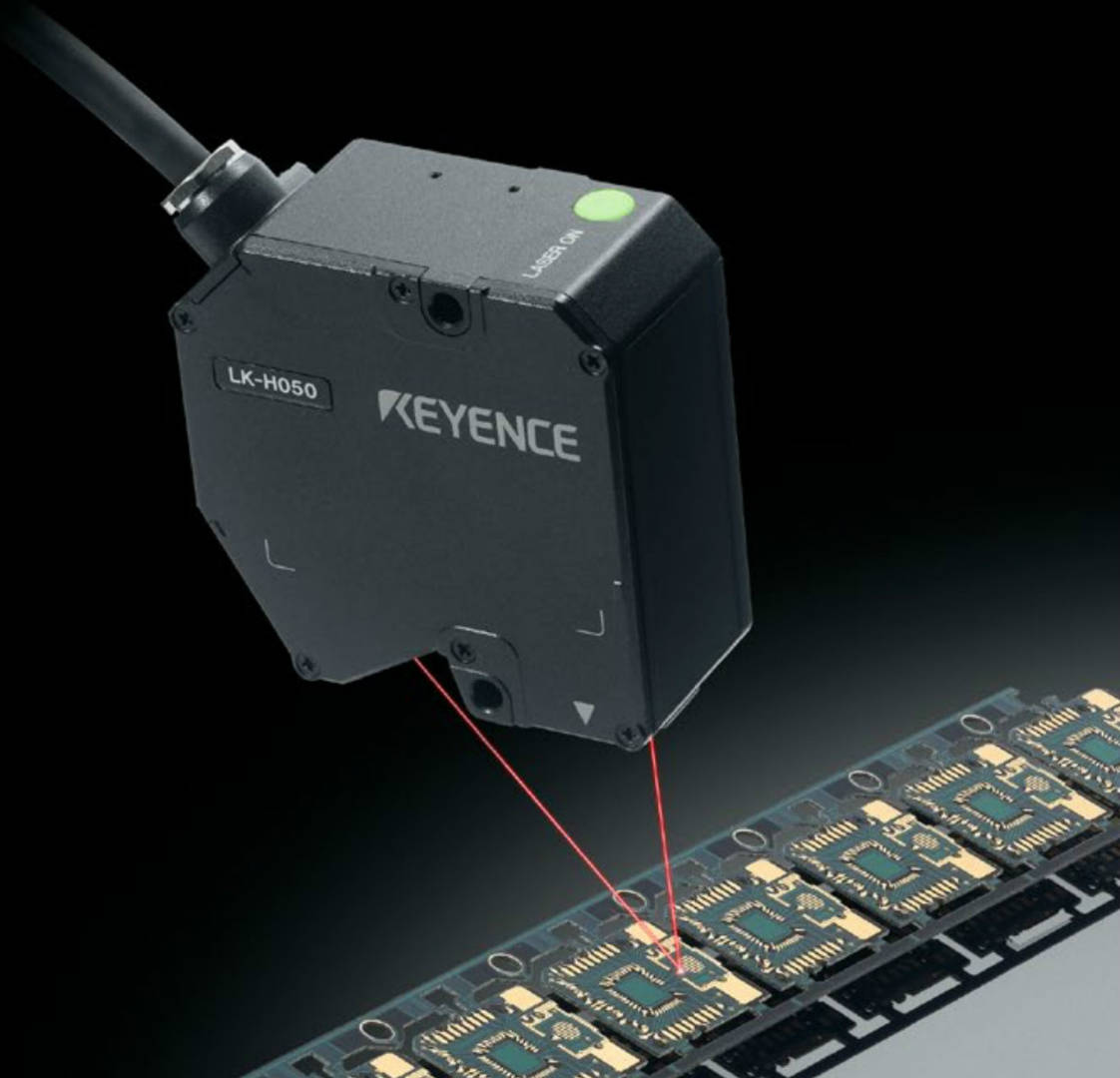

Keyence, one of the leading
sensor manufacturers worldwide
has provided the sensor heads
and controllers used to ensure
ultimate accuracy and top
performance.
keyence range

Stability
in rough
environments

Extreme resistance to shock, drifts
and temperature variations.

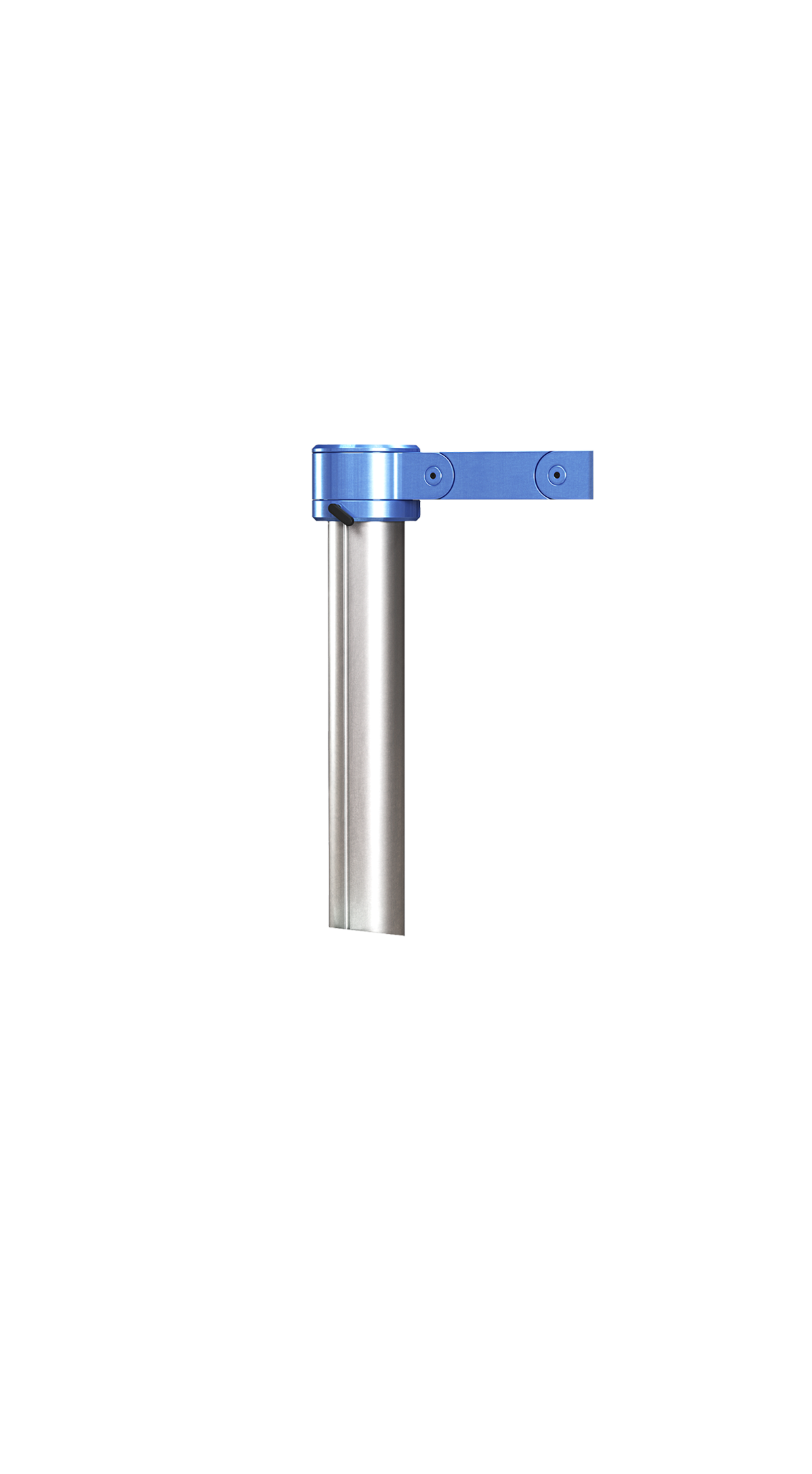

Variable length handles ensure
